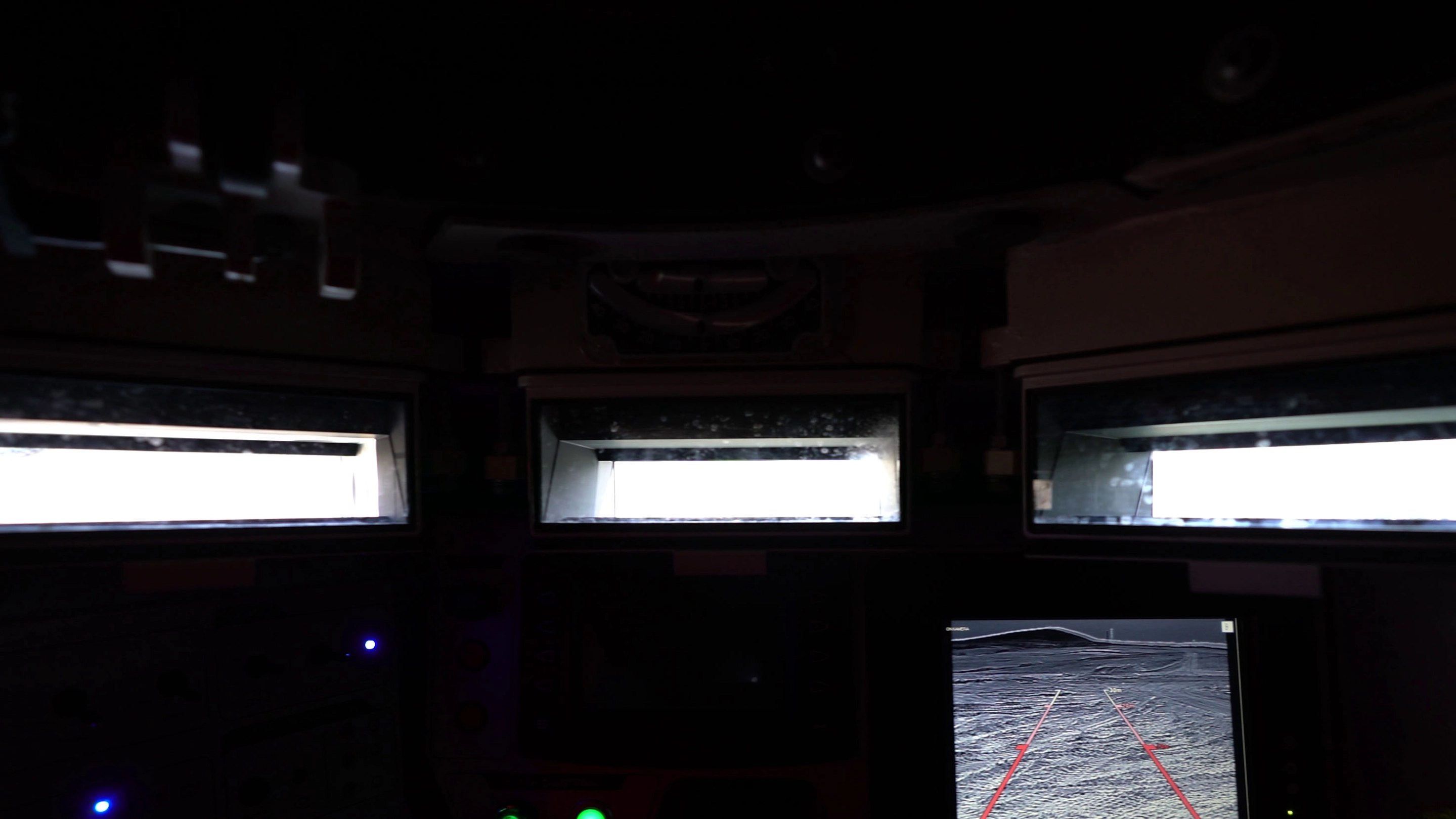

ASELSAN Sivas armored vehicle periscopes are engineered to provide safe external observation and superior optical clarity for tanks and armored fighting vehicles. Developed through advanced optical and optomechanical engineering, our modular glass and acrylic observation periscopes feature laser protection filters, anti-reflective (AR) coatings, and dust- and sand-resistant designs. With optional metal or fabric protective covers, anti-fogging heater modules on selected models, and Look-Up configurations providing additional upward observation capability, our periscopes meet diverse operational requirements.
Environmental conditions
Waterproof
1m derinlik - 30 dakika
Storage temperature
-54 °C / +71 °C
Standard
MIL-STD-810H
Operating temperature
-54 °C / +71 °C
Technicial Specifications
| Dimensions |
244.4 x 77 x 267.5 mm
|
| Viewing Angle |
H: 62° / V: 12°
|
| Coverage Angle |
H: 118° / V: 36.5°
|
| Laser Protection |
1064 nm OD 5
|
| Ballistic Protection |
Level 3 - STANAG 4569
|
| Weight |
7.5 kg
|
